Raised cosine pulse shaping

by

As mentioned earlier, the shortcomings of the sinc pulse can be addressed by making the transition band in the frequency domain less abrupt. The raised-cosine (RC) pulse comes with an adjustable transition band roll-off parameter \alpha, using which the transition band’s rate of decay can be controlled. The RC pulse shaping function is expressed in frequency domain as

Correspondingly, in time domain, the impulse response is given by

p(t) = \frac{sin \left(\frac{\pi t}{T_{sym}} \right)}{ \frac{\pi t}{T_{sym}}} \; \frac{cos \left( \frac{\pi \alpha t }{T_{sym}} \right)}{1-\left(\frac{2 \alpha t }{T_{sym}} \right)^2} \quad \\ \quad \text{where} \; 0 \leq \alpha \leq 1 \quad\quad\quad (2)

This article is part of the book Wireless Communication Systems in Matlab, ISBN: 978-1720114352 available in ebook (PDF) format (click here) and Paperback (hardcopy) format (click here).

A simple evaluation of the equation (2) produces singularities (undefined points) at p(t=0) and p(t=\pm T_{sym}/(2 \alpha)). The value of the raised-cosine pulse at these singularities can be obtained by applying L’Hospital’s rule [1] and the values are

\begin{aligned} p(t=0) &= 1 \\\\ p\left(t=\pm \frac{T_{sym}}{2 \alpha}\right) &= \frac{\alpha}{2} sin \left( \frac{\pi}{2 \alpha} \right) \end{aligned} \quad\quad\quad (3)

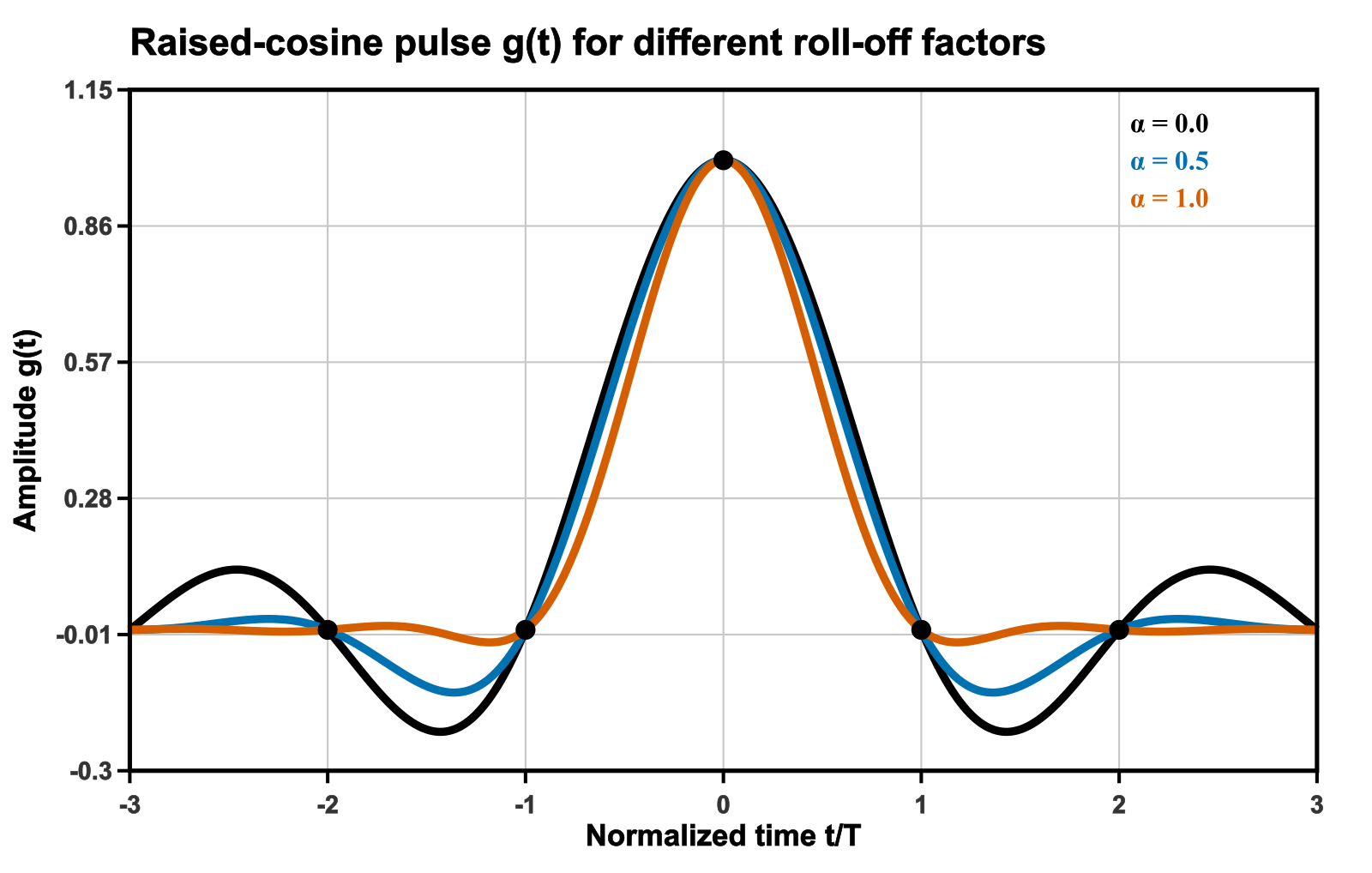

Figure 1: Raised-cosine pulse and its manifestation in frequency domain

The following Matlab codes generate a raised cosine pulse for the given symbol duration T_{sym}=1s and plot the time-domain view and the frequency response (shown in Figure 1). The RC pulse falls off at the rate of 1/|t|^3 as t \rightarrow \infty, which is a significant improvement when compared to the decay rate of sinc pulse which is 1/|t|. It satisfies Nyquist criterion for zero ISI – the pulse hits zero crossings at desired sampling instants. By controlling \alpha, the transition band roll-off in the frequency domain can be made gradual.

Program 1: raisedCosineFunction.m: Function for generating raised-cosine pulse(click here)

Matlab code for Program 1 is available is available in the book Wireless Communication Systems in Matlab (click here).

Program 2: test_RCPulse.m: Raised-cosine pulses and their manifestation in frequency domain

Tsym=1; %Symbol duration in seconds
L=10; % oversampling rate, each symbol contains L samples
Nsym = 80; %filter span in symbol durations
alphas=[0 0.3 0.5 1];%RC roll-off factors - valid range 0 to 1
Fs=L/Tsym;%sampling frequency
lineColors=['b','r','g','k','c']; i=1;legendString=cell(1,4);

for alpha=alphas %loop for various alpha values
	[rcPulse,t]=raisedCosineFunction(alpha,L,Nsym); %RC Pulse

	subplot(1,2,1); t=Tsym*t; %translate time base for given duration
	plot(t,rcPulse,lineColors(i));hold on; %plot time domain view
	[vals,f]=freqDomainView(rcPulse,Fs,'double');%See Chapter 1

	subplot(1,2,2);
	plot(f,abs(vals)/abs(vals(length(vals)/2+1)),lineColors(i));
	hold on;legendString{i}=strcat('\alpha =',num2str(alpha) );i=i+1;
end
subplot(1,2,1);title('Raised Cosine pulse'); legend(legendString);
subplot(1,2,2);title('Frequency response');legend(legendString);
